"Model S" VXS Series

A number of methods are used to enhance low frequency response in speaker enclosures. In bass reflex designs, a tuned port in the enclosure boosts low frequencies emanating from the rear of the speaker unit. The VXS10S adopts this method, specializing in more powerful low frequency reproduction. The problem with this approach is that as the enclosure becomes smaller or thinner, the size of the port must be reduced accordingly, resulting in increased resistance and correspondingly reduced bass enhancement. Bass reflex designs are not always suitable for compact enclosures.

Passive radiator designs avoid the use of a port, instead boosting bass response with a tuned passive “drone cone.” The passive radiator method is more suitable for compact enclosures, but the passive cone tends to be heavy, requiring some form of firm, durable suspension that can reduce efficiency. The directivity of the passive radiator also places restrictions on where and how the system can be installed.

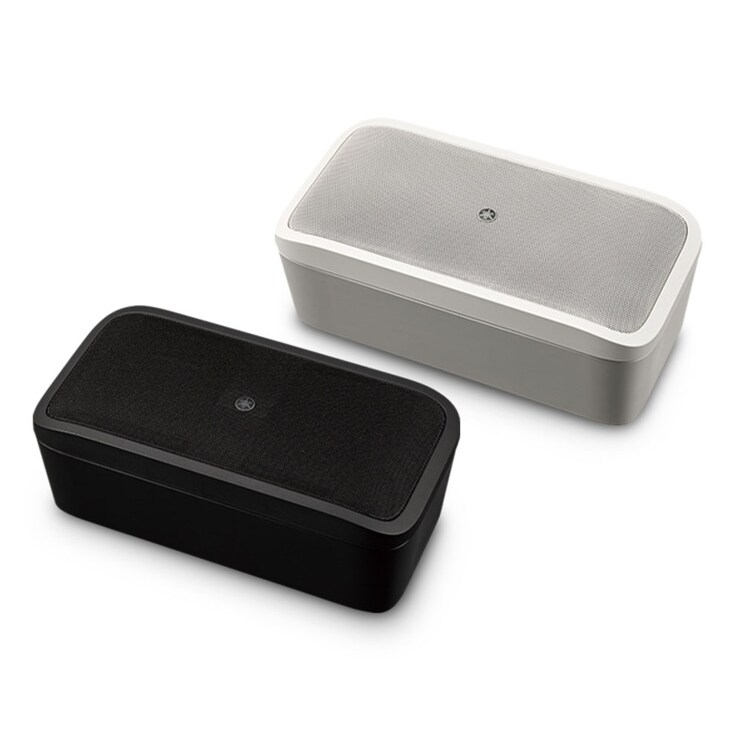

Original Yamaha SR-Bass™ technology employed in the VXS3S suspends a four-sided diaphragm on only one of its sides, using the resonance of the diaphragm to enhance the system’s low-frequency output. There are no limitations on the shape and materials used for the diaphragm, making SR-Bass™ technology applicable to a wide range of speaker designs, including compact models.

Yamaha offers 2 choices. That is compact VXS3S and powerful VXS10S. Please select the best model for your application.

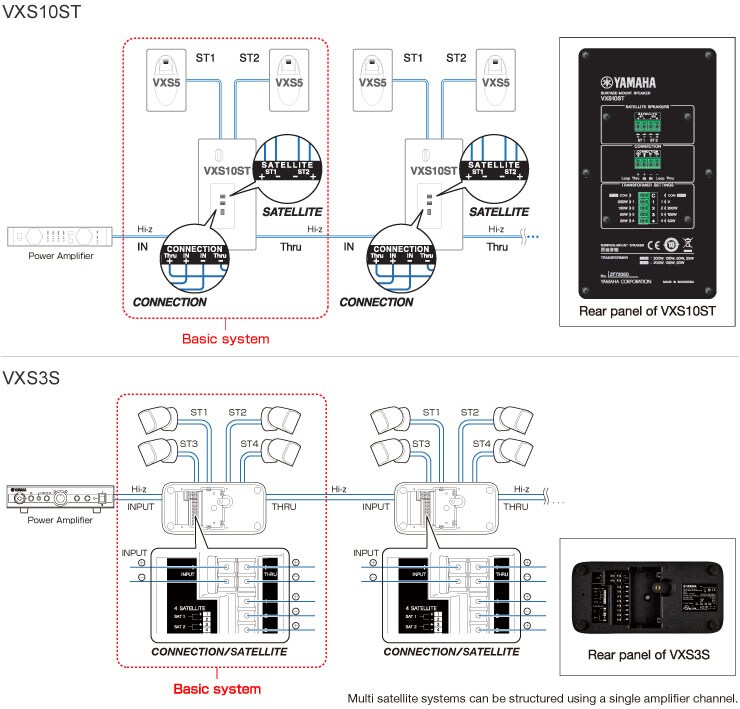

VXS3S dan VXS10S/VXS10ST memiliki konektor-konektor speaker satelit di panel belakang sehingga meminimalkan jumlah channel amplifier yang dibutuhkan untuk menjalankan sistem. Karena model VXS3S dan VXS10ST mendukung koneksi impedansi tinggi, speaker satelit berimpedansi rendah tetap dapat tersambung saat subwoofer tersambung ke sistem impedansi tinggi. Filter high-pass bawaan secara otomatis diterapkan ke speaker satelit, memberikan crossover yang natural dari subwoofer ke satelit.

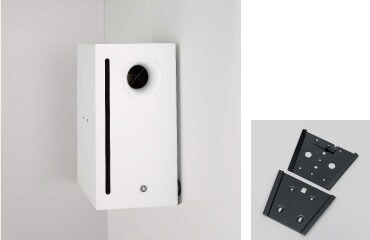

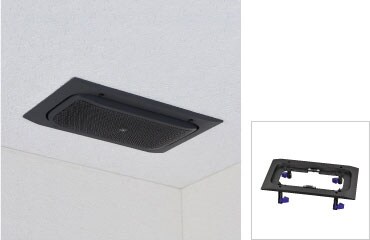

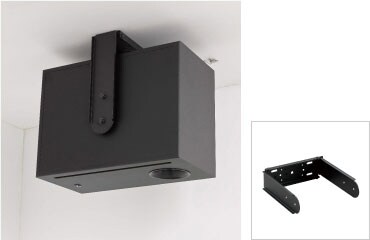

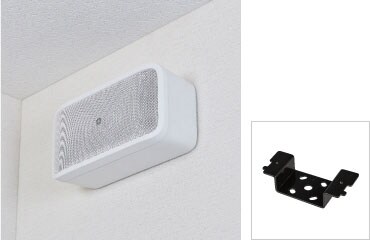

In addition to the supplied wall-mounting hardware, a variety of optional hardware allows VXS series “S” models to be mounted in a number of ways. The VXS10S can be placed on the floor or mounted on a wall or ceiling, while the VXS3S additionally allows flush ceiling mounting.

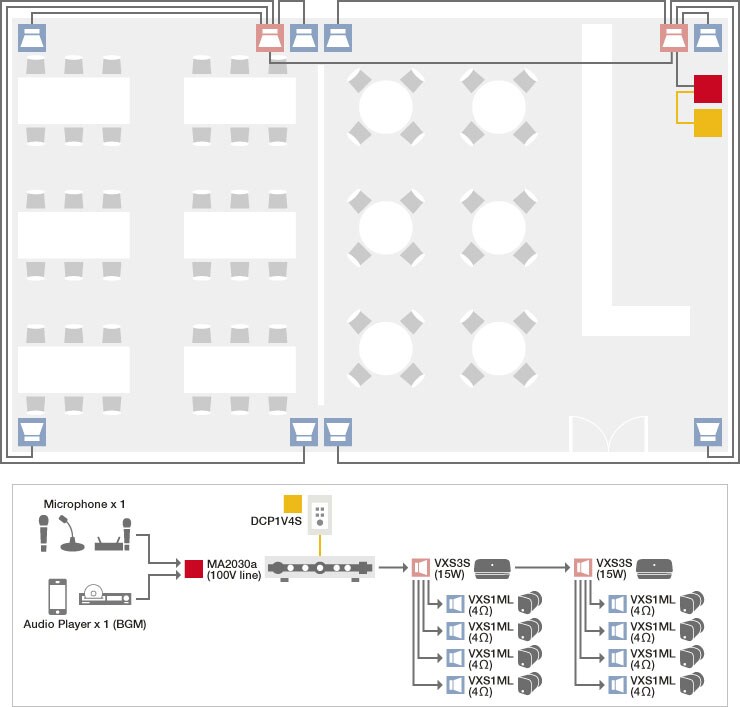

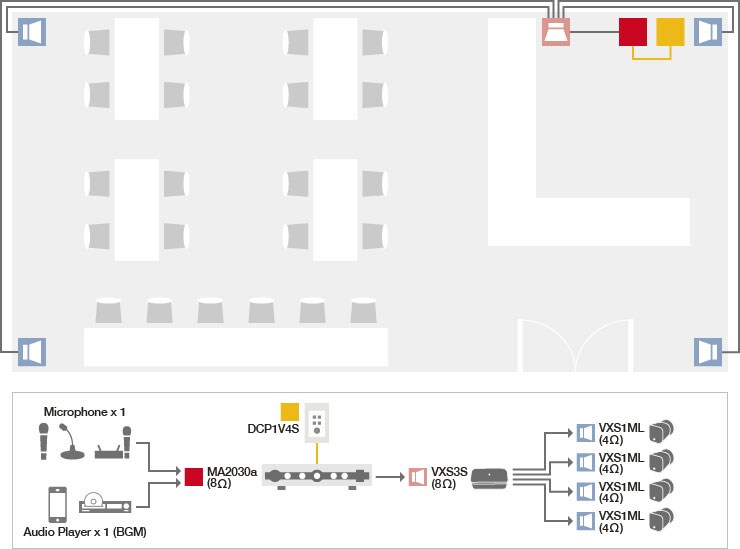

The VXS1ML and VXS3S system is ideal for BGM application such as cafe where just a few speakers will be used to cover the service area. Wide dispersion allows effective coverage with a minimum number of speakers. It can be installed easily and quickly with satellite connection.

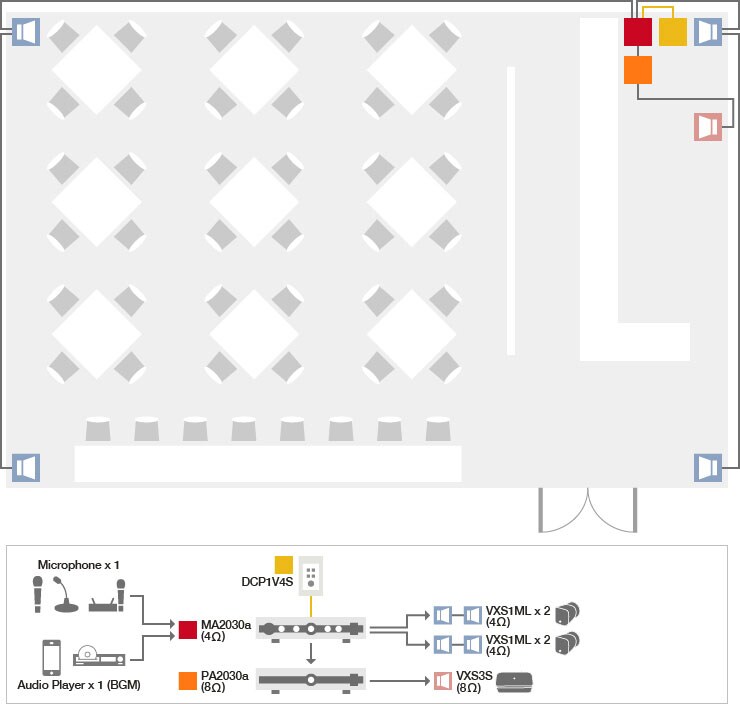

This is a flexible system that can control the mid-high and the low frequency range separately. You can flexibly adjust the balance according to your preference and sound source.

This is a system that connected VXS3S with high impedance and constructed multiple satellites. You can easily change the required volume by switching the output W number by tapping.

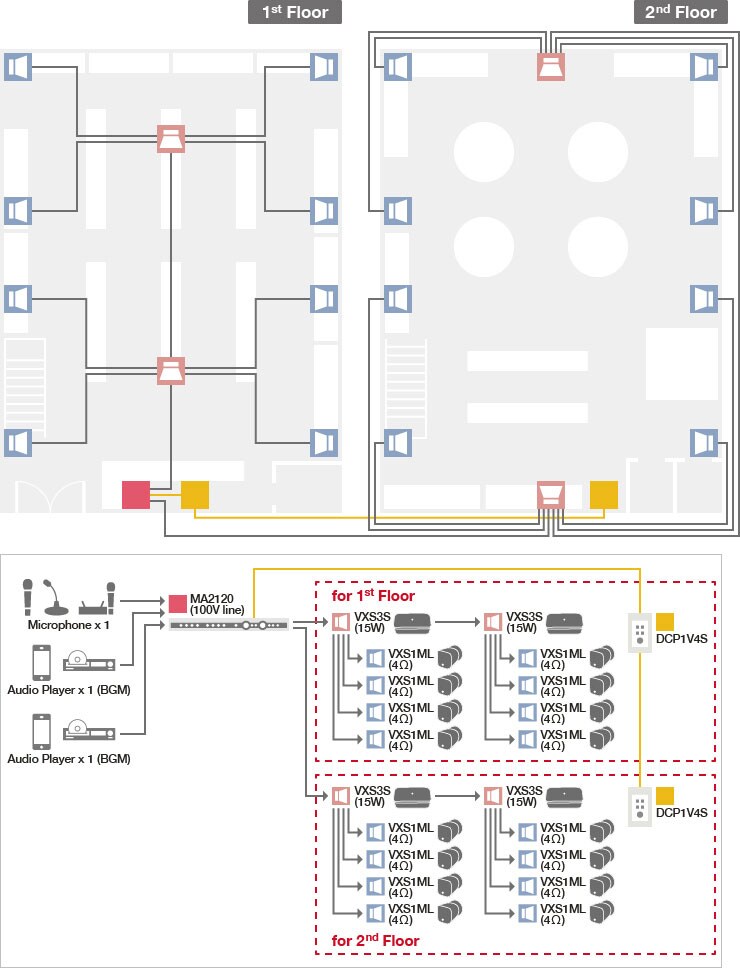

This is a system that connected VXS3S with high impedance and constructed multiple satellites. You can easily change the required volume by switching the output W number by tapping. The MA2120 can deliver different sources at different volumes in the respective zone.
