| Spesifikasi Umum | Umum | Konstruksi | Bolt-on (Miter bolting) |
|---|---|---|---|
| Panjang Skala | 34" (863.6 mm) | ||
| Bodi | Material body | Alder 3-Piece with Spline Joint | |
| Body Finish | Gloss Polyurethane | ||
| Leher | Material Neck | Maple | |
| Neck Finish | Satin Polyuretharne | ||
| Material Fingerboard | Maple (Scallopps from frets 17th through 21th) | ||
| Radius Fingerboard | 10" (250 mm) | ||
| Fret wire | 1-16 Fret: Jumbo, 17-21 Fret: Medium | ||
| Jumlah fret | 21 | ||
| Material mur | Polyacetal | ||
| Lebar @ Fret 0 / Fret 12 | 44.5 / 57.6 mm | ||
| Ketebalan @ Fret 1 / Fret 12 | 20.0 / 24.0 mm | ||
| Elektronik | Neck Pickup | Yamaha Designed DiMarzio Woofer Pickup | |
| Middle Pickup | DiMarzio WillPower | ||
| Bridge Pickup | - | ||
| Pengaturan | Woofer P.U. Volume, Middle P.U. Volume with Push-Pull Stereo/Mono Switch, Woofer Tone with Woofer High Cut Switch | ||
| Tombol Pickup | - | ||
| Hardware | Batang | Solid Brass | |
| Jarak Senar | 19mm | ||
| Tailpiece | - | ||
| Mesin tuning | Gotoh GB2 with Hipshot D-Tuner | ||
| Pickguard | White Pearl 3-Ply | ||
| Lain-lain | Ukuran senar | D'Addario EXL170 / 0.045-0.100 | |
| Case | Hardshell Case | ||
| Fitur khusus | A.R.E. / I.R.A. Treatment |

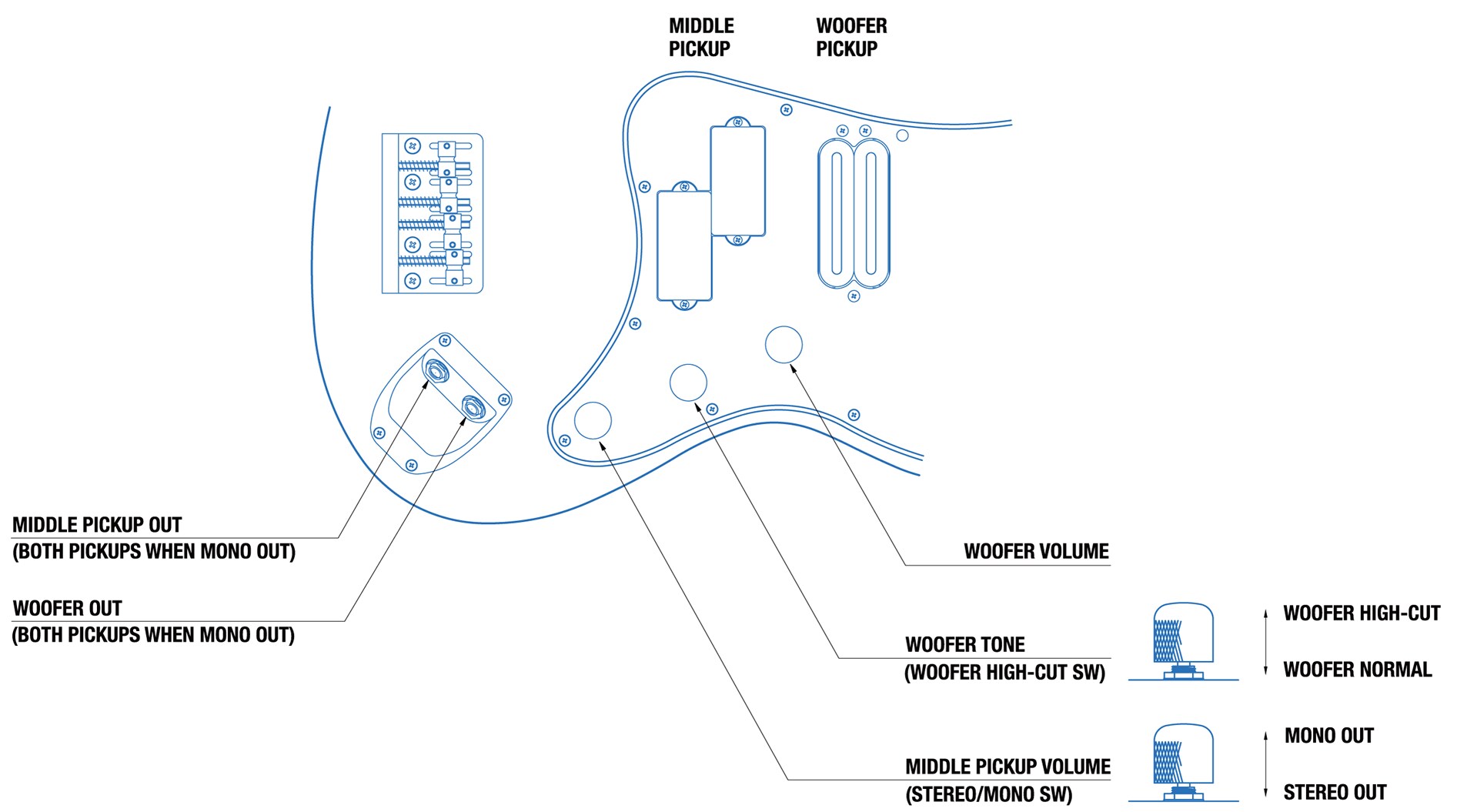

Sistem Kontrol
