Dapat digulir
| Spesifikasi Umum | Umum | Konstruksi | Bolt-on |
|---|---|---|---|
| Panjang Skala | 25-1/2" (648.0mm) | ||
| Bodi | Material body | Light Ash | |
| Body Finish | Gloss Polyurethane | ||
| Leher | Material Neck | Maple | |
| Neck Finish | Oil Finish | ||
| Material Fingerboard | One Piece Maple | ||
| Radius Fingerboard | 7-1/4" (184mm) | ||
| Fret wire | Medium Jumbo | ||
| Jumlah fret | 22 | ||
| Material mur | Bone | ||
| Lebar Neck @ Fret 0/Fret ke-12 | 40.5 / 51.5 mm | ||
| Ketebalan @ Fret ke-1/Fret ke-12 | 21.3 / 23.0 mm | ||
| Elektronik | Neck Pickup | Seymour Duncan SH-1n Zeb Rev | |
| Middle Pickup | - | ||
| Bridge Pickup | Seymour Duncan STHR-1b | ||
| Pengaturan | Master Volume, Master Tone | ||
| Tombol Pickup | 3-Position Lever Switch | ||
| Hardware | Batang | Six Saddle Hard Tail | |
| Tremolo Arm | - | ||
| Jarak Senar | 10.8mm | ||
| Tailpiece | - | ||
| Mesin tuning | GOTOH SD91-05M-L | ||
| Pickguard | 3-Ply Black | ||
| Lain-lain | Ukuran senar | D'Addario EXL110 / 0.010-0.046 | |
| Case | - | ||
| Fitur khusus | I.R.A. Treatment |

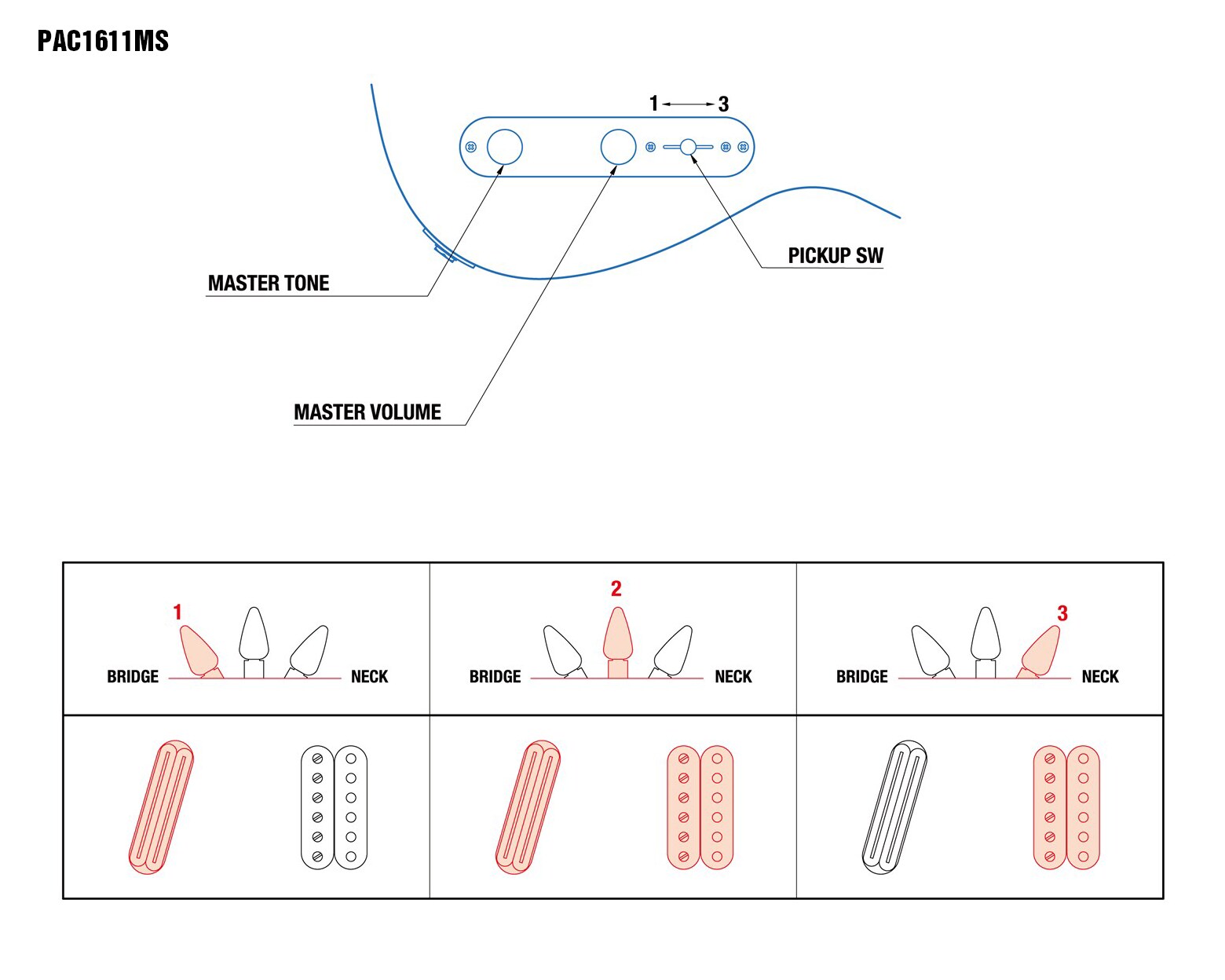

Sistem Kontrol
