| Spesifikasi Umum | Umum | Konstruksi | Bolt-on | Bolt-on | Bolt-on | Bolt-on |
|---|---|---|---|---|---|---|
| Panjang Skala | 25-1/2" (648,0 mm) | 25-1/2" (648,0 mm) | 25-1/2" (648,0 mm) | 25-1/2" (648,0 mm) | ||
| Bodi | Material body | Alder | Alder | Alder | Alder | |
| Body Finish | Poliuretan Gloss | Poliuretan Gloss | Poliuretan Gloss | Poliuretan Gloss | ||
| Leher | Material Neck | Maple | Maple | Maple | Maple | |
| Neck Finish | Satin Bernuansa Kustom / Poliuretan | Satin Bernuansa Kustom / Poliuretan | Satin Natural Smooth / Poliuretan | Satin Natural Smooth / Poliuretan | ||
| Material Fingerboard | Rosewood | Maple | Rosewood | Maple | ||
| Radius Fingerboard | Compound Radius 9,5" - 12" (241,3 - 304,8 mm) | Compound Radius 9,5" - 12" (241,3 - 304,8 mm) | 12" (304.8 mm) | 12" (304.8 mm) | ||
| Fret wire | Jumbo Sedang / Stainless Steel | Jumbo Sedang / Stainless Steel | Jumbo Sedang / Stainless Steel | Jumbo Sedang / Stainless Steel | ||
| Jumlah fret | 22 | 22 | 22 | 22 | ||
| Material mur | Graph Tech TUSQ | Graph Tech TUSQ | Graph Tech TUSQ | Graph Tech TUSQ | ||
| Lebar Neck @ Fret 0/Fret ke-12 | 42,0/52,4 mm | 42,0/52,4 mm | 42,0/52,4 mm | 42,0/52,4 mm | ||
| Ketebalan @ Fret ke-1/Fret ke-12 | 21,5 / 23,9 mm | 21,5 / 23,9 mm | 21,5 / 23,9 mm | 21,5 / 23,9 mm | ||
| Elektronik | Neck Pickup | Reflectone EH7n: Humbucker | Reflectone EH7n: Humbucker | Reflectone EH7n: Humbucker | Reflectone EH7n: Humbucker | |
| Middle Pickup | - | - | - | - | ||
| Bridge Pickup | Reflectone HT7b: Single Coil | Reflectone HT7b: Single Coil | Reflectone HT7b: Single Coil | Reflectone HT7b: Single Coil | ||
| Pengaturan | Master Volume dengan sirkuit high-pass, Master Tone (Focus Switch Push-Pull untuk Single Coil) | Master Volume dengan sirkuit high-pass, Master Tone (Focus Switch Push-Pull untuk Single Coil) | Master Volume dengan sirkuit high-pass, Master Tone (Focus Switch Push-Pull untuk Single Coil) | Master Volume dengan sirkuit high-pass, Master Tone (Focus Switch Push-Pull untuk Single Coil) | ||
| Tombol Pickup | Lever Switch 3-Posisi | Lever Switch 3-Posisi | Lever Switch 3-Posisi | Lever Switch 3-Posisi | ||
| Hardware | Batang | Gotoh BC-TS1S (krom) dengan 3-brass saddle | Gotoh BC-TS1S (krom) dengan 3-brass saddle | Gotoh BC-TS1S (krom) dengan 3-brass saddle | Gotoh BC-TS1S (krom) dengan 3-brass saddle | |
| Tremolo Arm | - | - | - | - | ||
| Jarak Senar | 10,8 mm | 10,8 mm | 10,8 mm | 10,8 mm | ||
| Tailpiece | - | - | - | - | ||
| Mesin tuning | Locking Tuner Gotoh | Locking Tuner Gotoh | Locking Tuner Gotoh | Locking Tuner Gotoh | ||
| Pickguard | Shell White: Tortoiseshell 4-lapis, Warna lainnya: Parchment 3-lapis | Parchment 3-lapis | Parchment 3-lapis | Parchment 3-lapis | ||
| Lain-lain | Ukuran senar | D'Addario XL-110 / 0,010-0,046 | D'Addario XL-110 / 0,010-0,046 | D'Addario XL-110 / 0,010-0,046 | D'Addario XL-110 / 0,010-0,046 | |
| Case | Selubung Keras | Selubung Keras | Gig Bag | Gig Bag | ||
| Fitur khusus | I.R.A. Treatment | I.R.A. Treatment | - | - | ||

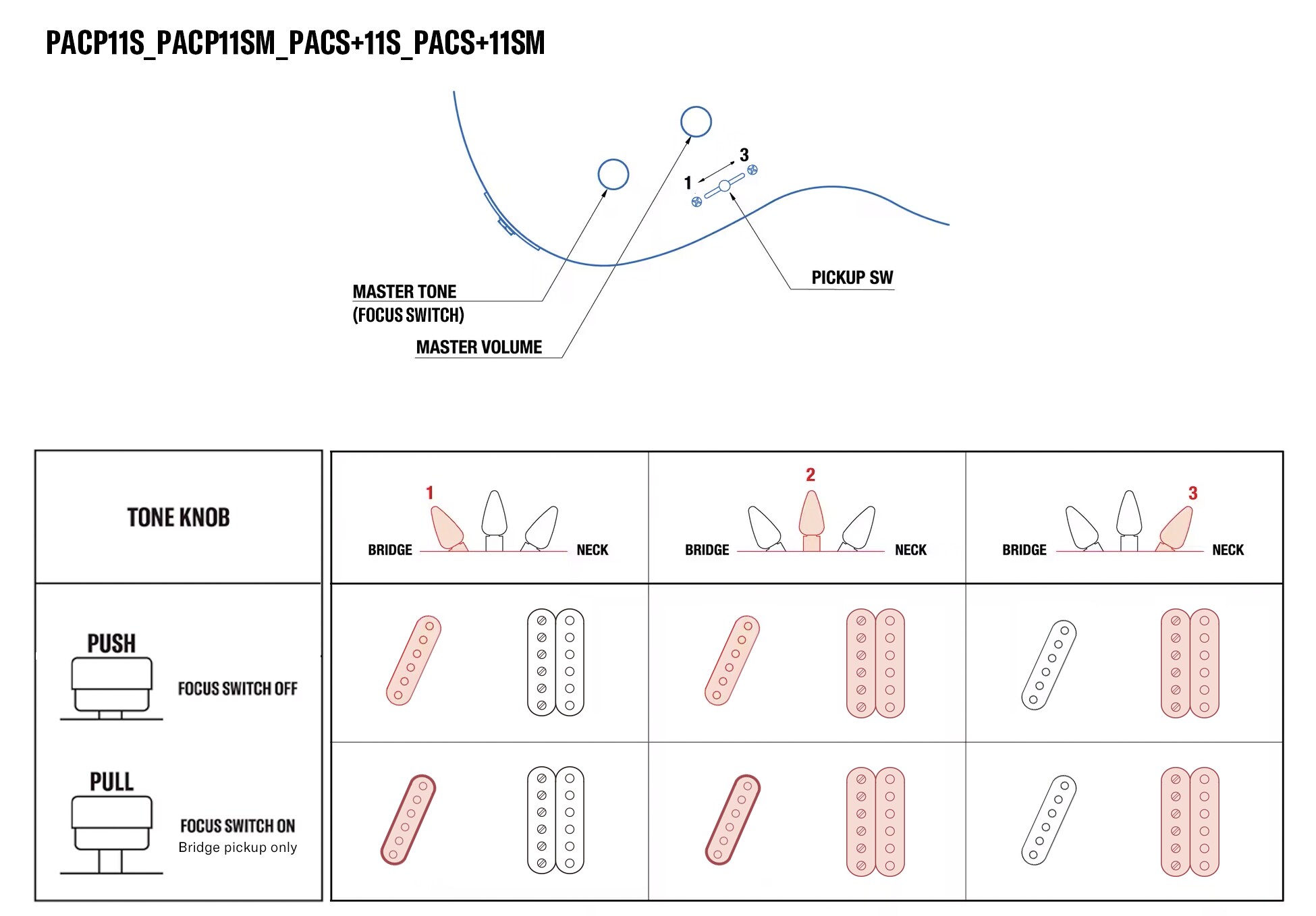

Sistem Kontrol
