Outdoor Stages [Small]

A compact, portable PA system with power suitable for live band music performance on a small outdoor stage for an audience of up to 100 people depending on seating/venue size.

- The system consists of a mixing console, 2x powered speakers, a powered subwoofer for front of house sound, and 6x powered speakers for monitoring.

- Studio-grade dual effect processors: high-end REV-X reverb and SPX digital multi-effect for versatile sound-shaping via simple, intuitive control. [Mixing console MGP24X]

- Speakers can reproduce consistent clarity at any output level with D-CONTOUR intelligent dynamic control feature. [Powered loudspeaker DXR12]

- High-output, versatile subwoofers deliver your bottom end with superb clarity. [Powered subwoofer DXS15]

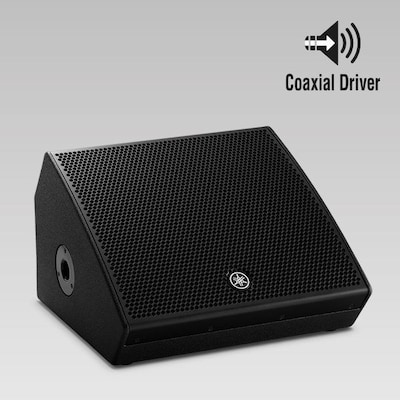

- Floor monitor speakers feature an optimized 50° wedge angle. [Powered loudspeaker DBR12]

Category Model Name Qty
Mixing Console MGP24X 1
Power Amplifier - -
Main Speaker DXR12(Powered Speaker) 2
Subwoofer DXS15(Powered Speaker) 2
Monitor Speaker DBR12(Powered Speaker) 5

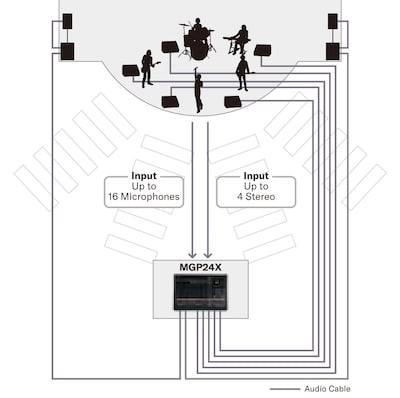

System

System

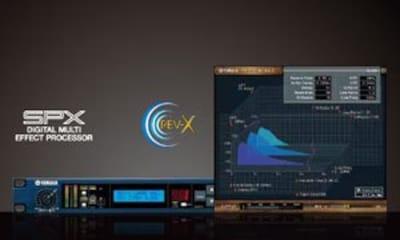

Dual Digital Effects

Dual Digital Effects

MGP mixing console offers two separate studio-grade effects processors for ultimate enhancement of your sound, with simple intuitive control. Yamaha's high-end REV-X reverb offers three very musical and natural high-resolution reverb effects: Hall, Room and Plate—a first for any Yamaha analog mixer. For more sound-shaping possibilities, Yamaha's renowned SPX digital multi-effect processor provides a useful selection of 16 advanced digital effects with editable parameters. Both processors can be used simultaneously, giving you a vast array of tools to colour your sound.

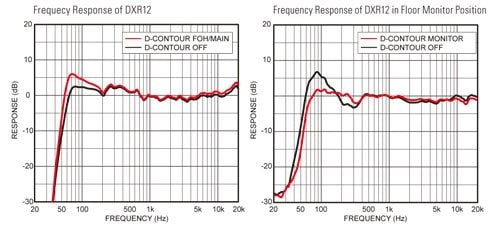

Intelligent Dynamic Control

Intelligent Dynamic Control

D-CONTOUR is an intelligent multi-band compressor that gives you powerful and consistent sound throughout all output levels. By constantly monitoring the output of multiple frequency bands and calculating the optimum EQ adjustments for each, even the maximum sound output maintains outstanding clarity and musicality. With the DXR Series, D-CONTOUR provides a more detailed tuning of your sound with two different settings: FOH/ MAIN mode or MONITOR mode.

Highly Portable Enclosure Design

Highly Portable Enclosure Design

DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers.

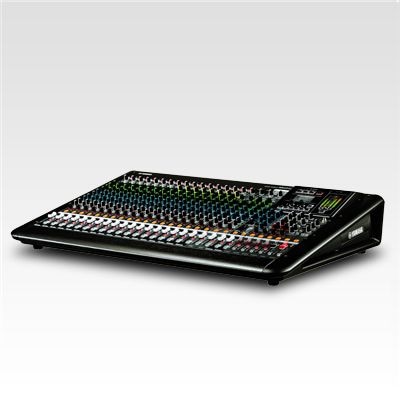

MGP24X

MGP24X

Hybrid mixer matching professional analog mixing engine with superior digital functions

Max. 16 Mic / 24 Line Inputs (16 mono and 4 stereo)

4 GROUP Buses + ST Bus / 6 AUX Sends incl. 2 FX Sends

2 Matrix out/ 1 Mono out

Dual digital effects: advanced "REV-X" reverb and 16 "SPX" effects

"X-pressive EQ" based on Yamaha's VCM (Virtual Circuit Modeling) technology

Stereo Hybrid Channel with DSP: Priority Ducker, Leveler and Stereo Image

iPod/ iPhone USB connection for high quality digital playback

"MGP Editor" App for detailed control of DSP settings with iPhone/iPod

DXR12

DXR12

12" 2-way powered loudspeaker

1100W Class-D amplifiers

Maximum 132dB SPL (peak)

D-CONTOUR multi band dynamic processor

Intelligent Onboard 3-Channel Mixer

Compact and lightweight (19.3kg / 42.5lbs) with durable ABS enclosures

Floor monitor angle

Dual-Angle 35mm Pole Mount Socket

Integrated M10 rigging points for suspended applications

Optional U-Bracket (UB-DXR12) and Speaker Cover (SPCVR-1201)

DXS15

DXS15

15" powered subwoofer

950W Class-D amplifiers

Maximum 132dB SPL (peak)

Frequency Range 45Hz-160Hz

D-XSUB Bass Processing

Compact and lightweight (38.0kg / 83.8lbs)

Durable wood enclosure with LINE-X® finish

35mm Pole Socket

Optional Speaker Cover (SPCVR-15S01)

DBR12

DBR12

12" 2-way powered loudspeaker

1000W Class-D amplifiers

Maximum 131dB SPL (peak)

D-CONTOUR multi band dynamic processor

Easy-to-use Onboard 2-Channel Mixer

Compact and lightweight (15.8kg / 34.8lbs) with durable Plastic enchosures

Floor monitor angle

35mm Pole Mount Socket

Integrated M8 rigging points for suspended applications

Optional Brackets (BBS251, BCS251, BWS215-300, BWS251-400) and Speaker Cover (SPCVR-1201)
