Personal Monitoring with MonitorMix

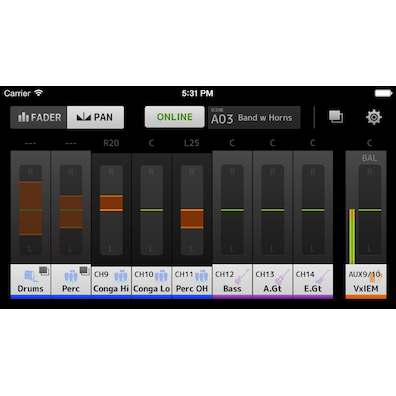

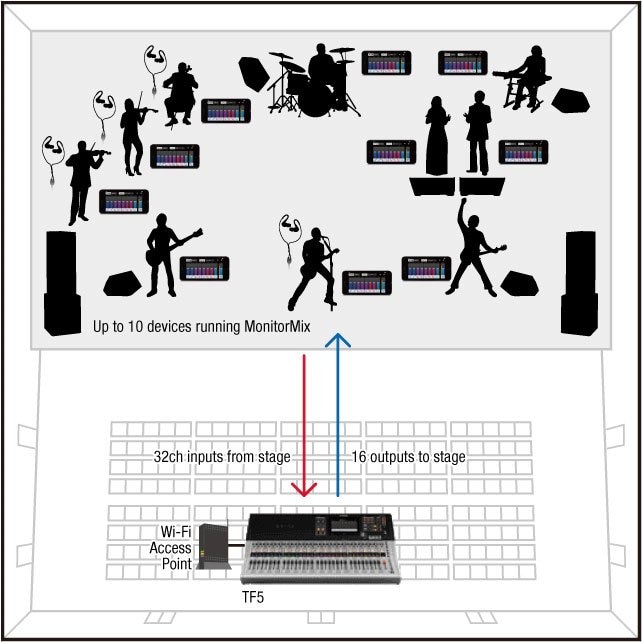

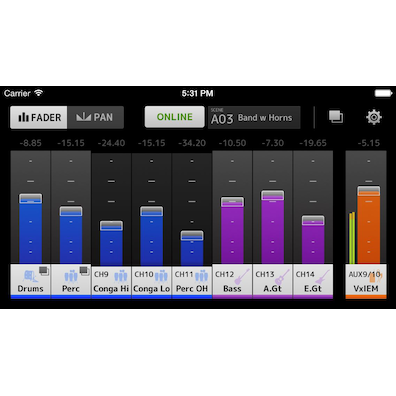

The MonitorMix application for the CL / QL / TF Series allows individual wireless MIX / MATRIX / AUX mixing from up to 10 iPhone, iPad or iPod touch devices simultaneously.

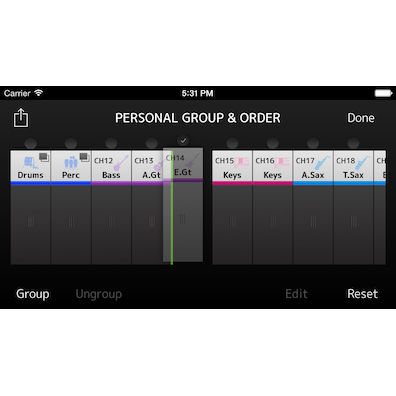

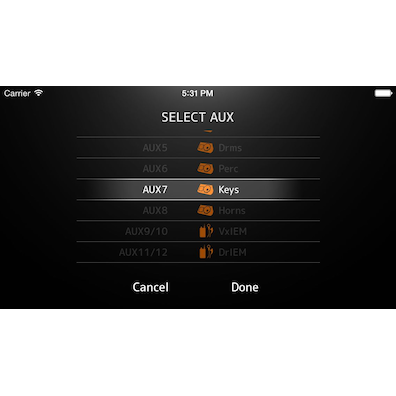

Each performer can have convenient control over the MIX / MATRIX / AUX buses assigned to them, without having to deal with complex settings or parameters. They can also create personal Group settings for even easier adjustment: all levels on just one fader, for example. Even large bands can have the personal control they need, reducing demands on the sound engineer.
[For CL / QL Series]
Since up to one device running CL / QL Editor, up to 5 devices running CL / QL StageMix and up to 10 devices running MonitorMix can be connected at the same time.
[For TF Series]
Since up to three devices running TF Editor or TF StageMix and up to 10 devices running MonitorMix can be connected at the same time.
Yamaha TF Series Tutorial Video: Editors and Apps
MonitorMix can enhance your workflow, bring freedom and fun to your mix.
Price : Free
OS : iOS 7.0 or later, Android 4.4 or later
Hardware : iPhone 4S or later, iPod touch 5th generation or later, iPad 2 or later , Nexus 4/5/6/7/9/10/5X/6P is recommended for Android
Supported mixers and firmware : Yamaha Digital Mixing Console CL/QL series V4.00 or later, TF series V1.12 or later

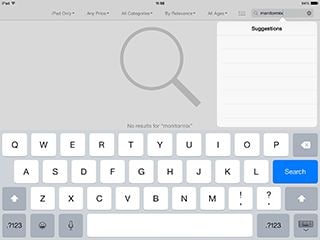

1.Open App Store with iPad, then input “MonitorMix” in the search box and tap “Search” button.

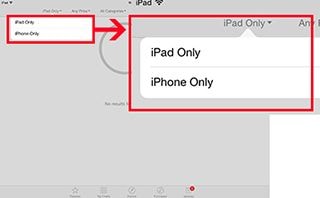

2.”No results for MonitorMix” will be displayed. Tap “iPad Only” that is displayed at the upper left, then choose “iPhone Only”.

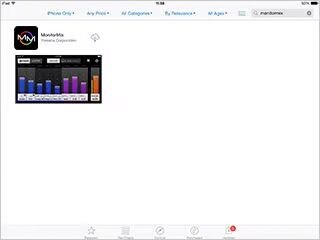

3. After selecting “iPhone Only”, search “MonitorMix” again. “MonitorMix” will appear in the search result.
The difference between “MonitorMix” for iPad and iPhone:
“MonitorMix” has the same functions with both iPad and iPhone. When using with iPad, tap the “2X” button that is displayed at the lower right to show the app in full screen.
